ACO Stormsed Vortex

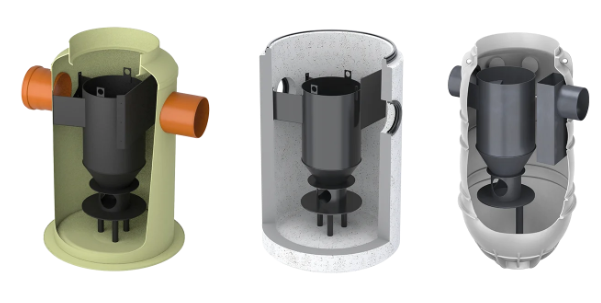

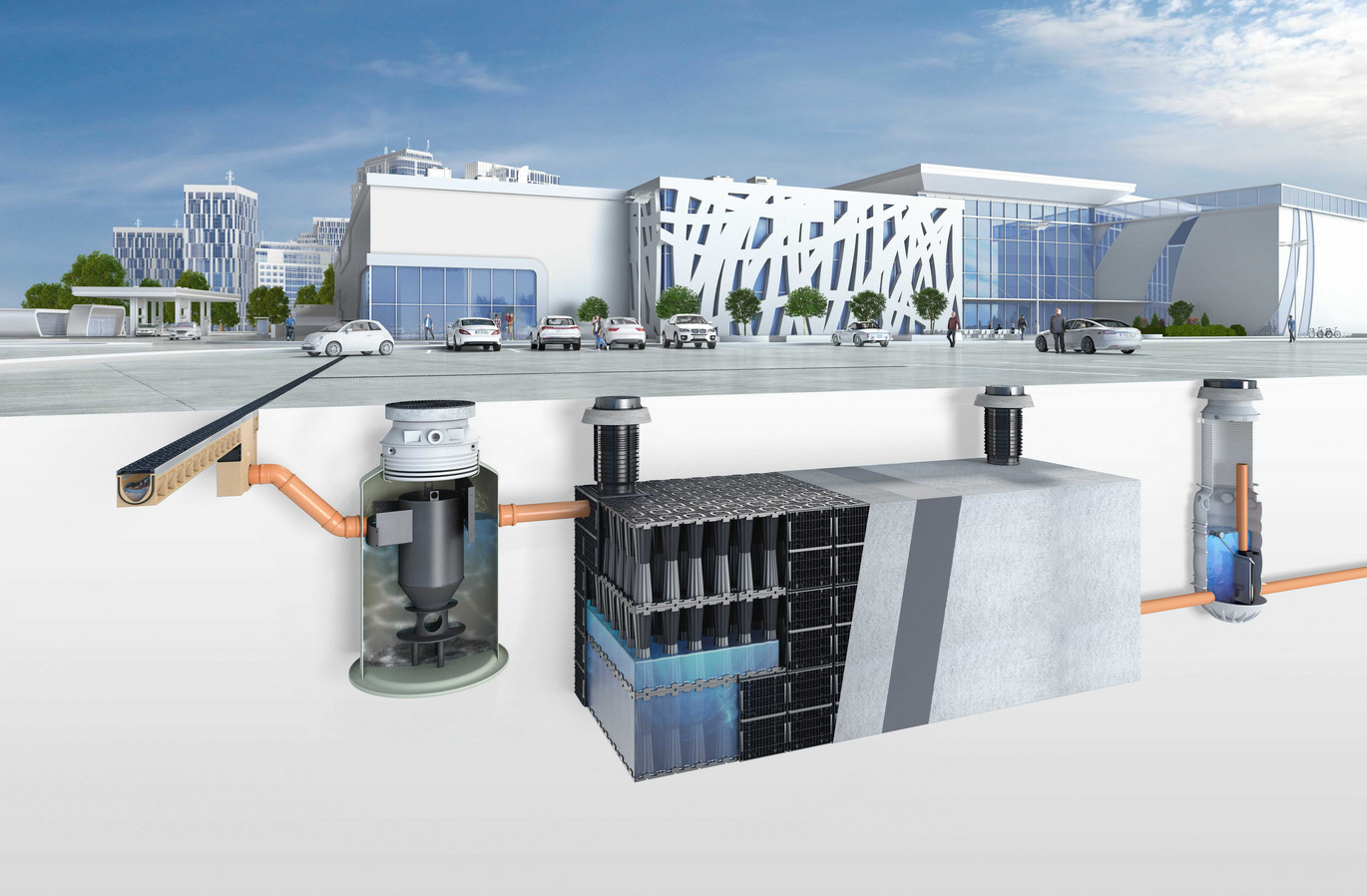

ACO Stormsed Vortex enables sedimentation through hydrodynamic or vortex separation. Designed according to NJDEP specifications, the patented solution can remove up to 80% of pollutants and capture 100% of floatables. The unique design of ACO Stormsed Vortex separates high flows from captured sediment, allowing it to treat a wide range of flow rates from sites of less than 1,000 sqm to over 20,000 sqm depending on the country of specification.

Its small footprint requires less excavation during installation, and variable connection outlet angles are available. Vortex flow allows Stormsed Vortex to operate at high treatment flow rates without the hydraulic shortcutting or sediment remobilisation issues found in other sedimentation technologies, making it perfect for high flow applications!


  • Wide range of flow rates
  • Designed for 80% TSS removal of 75-micron particles at high treatment flow rates
  • Compact treatment solution with low footprint
  • Patented design
  • Easy maintenance
  • Inner parts are made of high-density polyethylene (HDPE)
  • Possibility of various outlet angles 90°–180° (optional)
