ACO commercial drainage

The ACO commercial drainage family of products

Selecting the right solution

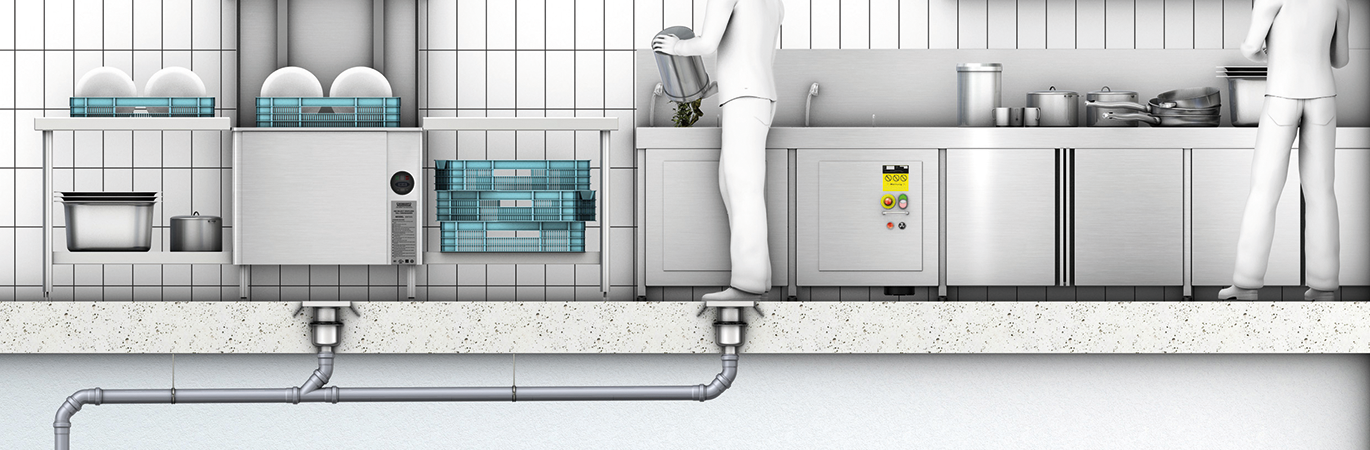

The specification of point floor drainage in commercial buildings is driven by the application in which it will be installed. These requirements can be met with different product ranges depending on factors including the size of project, public access and frequency of use.

The ACO Building Drainage product portfolio is available in a variety of materials. Each of these materials has unique advantages in the specific applications for which they’re intended.

ACO products are compatible with one another, enabling our customers to combine products from different ranges to develop tailored drainage systems.

The ACO commercial drainage range offers a wide range of gully designs which can be used to meet project-specific requirements:

  • floor composition
  • maintenance requirements
  • project budget
ACO commercial drainage catalogue

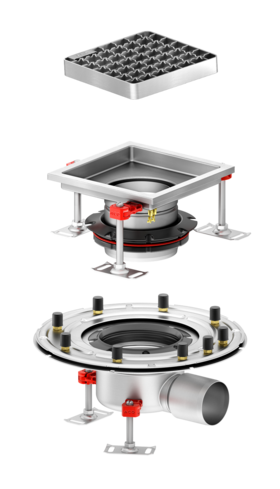

The ACO hygienic gully system overview

ACO gully range is available in a number of versions featuring different flow rates, grating designs, sizes and spigot outlet diameters to suit various applications.

The floor construction and depth together with the use of any waterproofing membrane play an important role in the selection of the appropriate type of gully. The ACO gully range is available with vertical or horizontal spigot outlets.

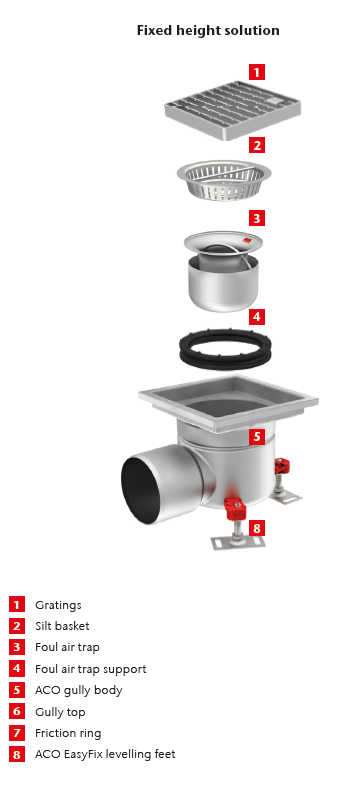

Fixed height gullies are convenient and free-standing units which are suitable for cementitious, resin or tiled floors.

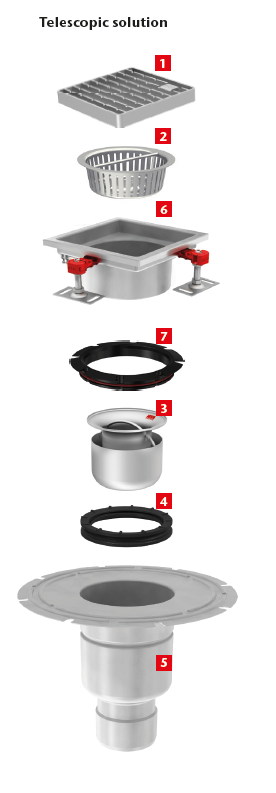

Telescopic gullies can be installed either with a gully top or ACO channel in most flooring constructions, including floors with waterproofing membranes.

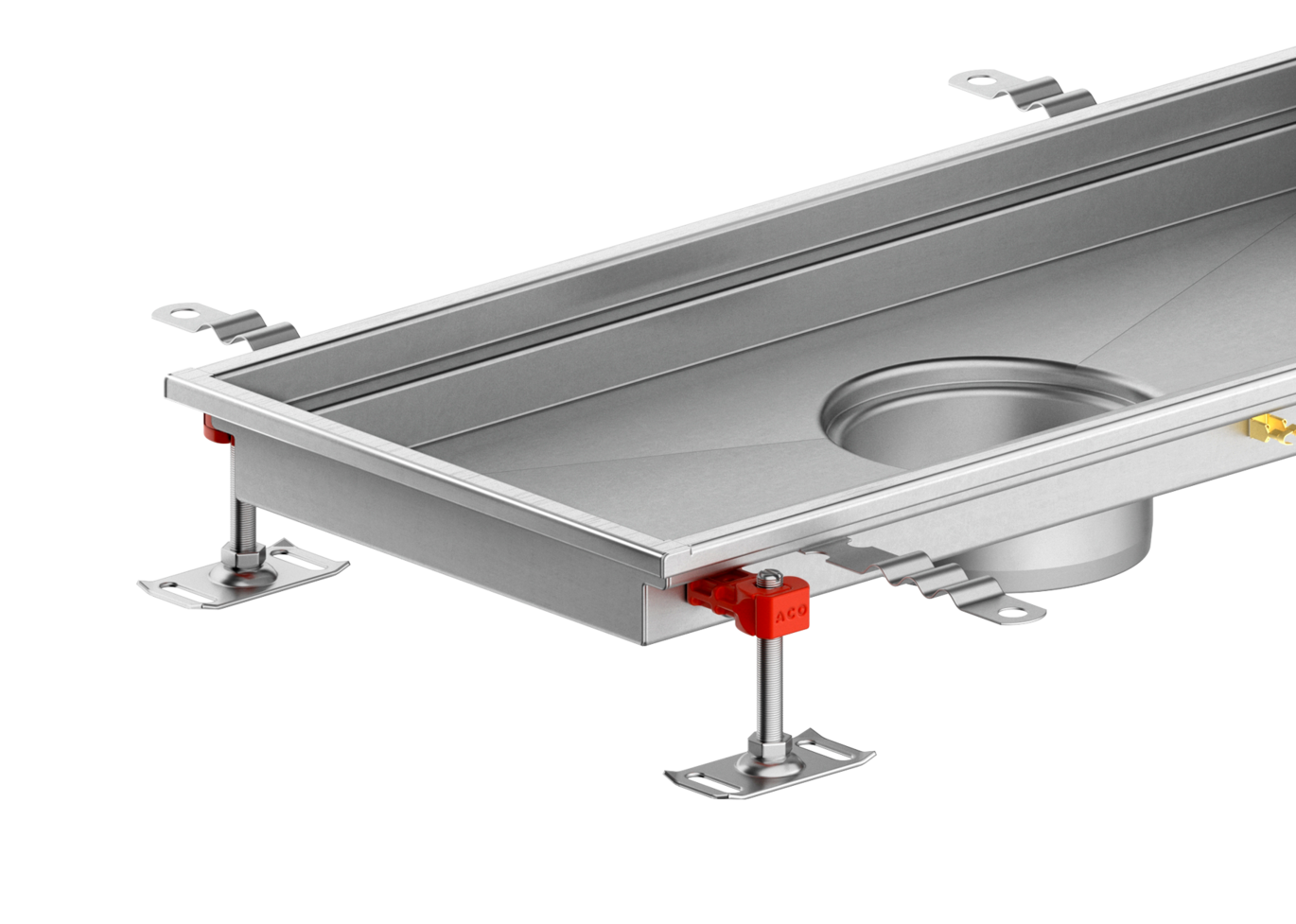

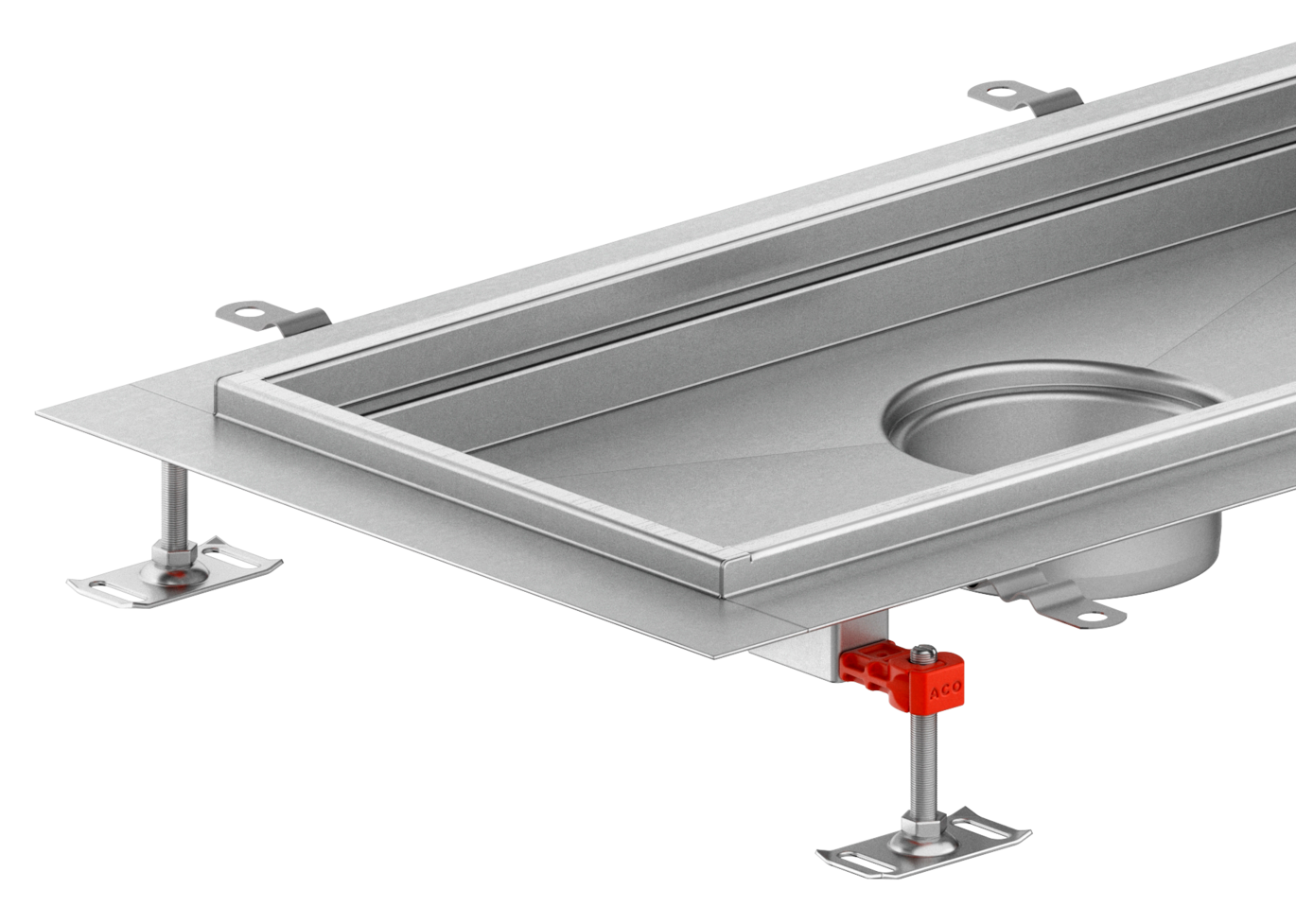

ACO commercial channel

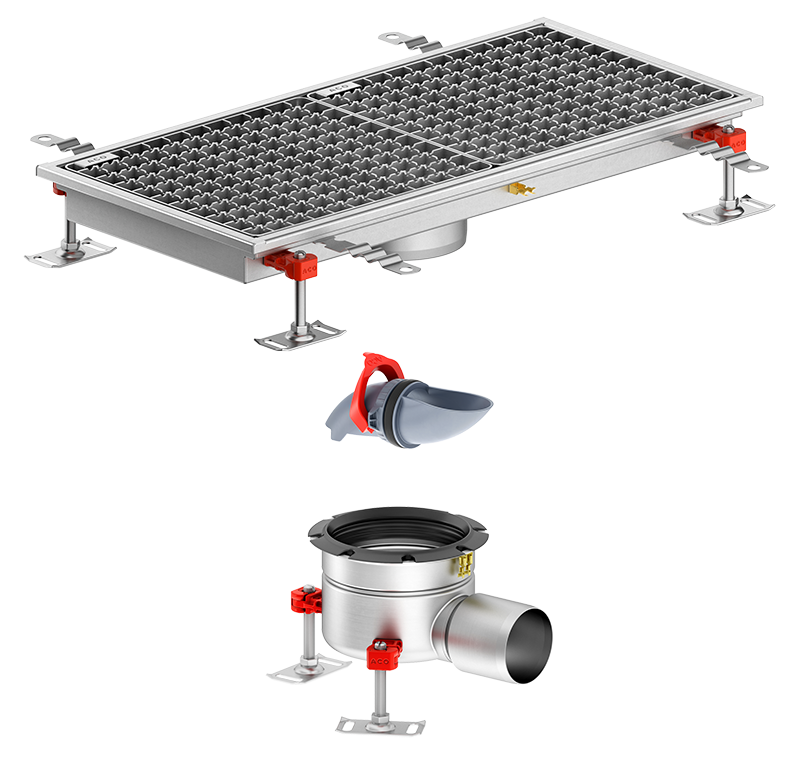

The ACO commercial channel is compatible with the ACO commercial gully bodies. The new channel shares many features with the high-end ACO hygienic box channel at a budget-friendly cost.

  • Fully compliant to EN 1253
  • Full drainability to ensure hygienic cleaning
  • Fully pickle passivated to restore corrosion resistance and optimum durability
  • Steel thickness min 1.5 mm
  • Rubber edge infill to provide additional strength in dense traffic areas
  • EasyFix levelling feet for quick, easy and precise height adjustment during installation
  • Chamfered spigot outlets provide easy push-fit connection
  • ACO protective cover available
  • Optional silt basket for effective debris collection

You can check out the whole portfolio of commercial channels in the ACO Commercial Drainage catalogue

ACO commercial drainage catalogue
